Weldclass PROMAX 850R Welding Helmet with PAPR R50 Air Respirator
WC-06702USD $751.41
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
Shop Menu Store Categories
1 x Bonus 2nd battery
1 x Battery charger

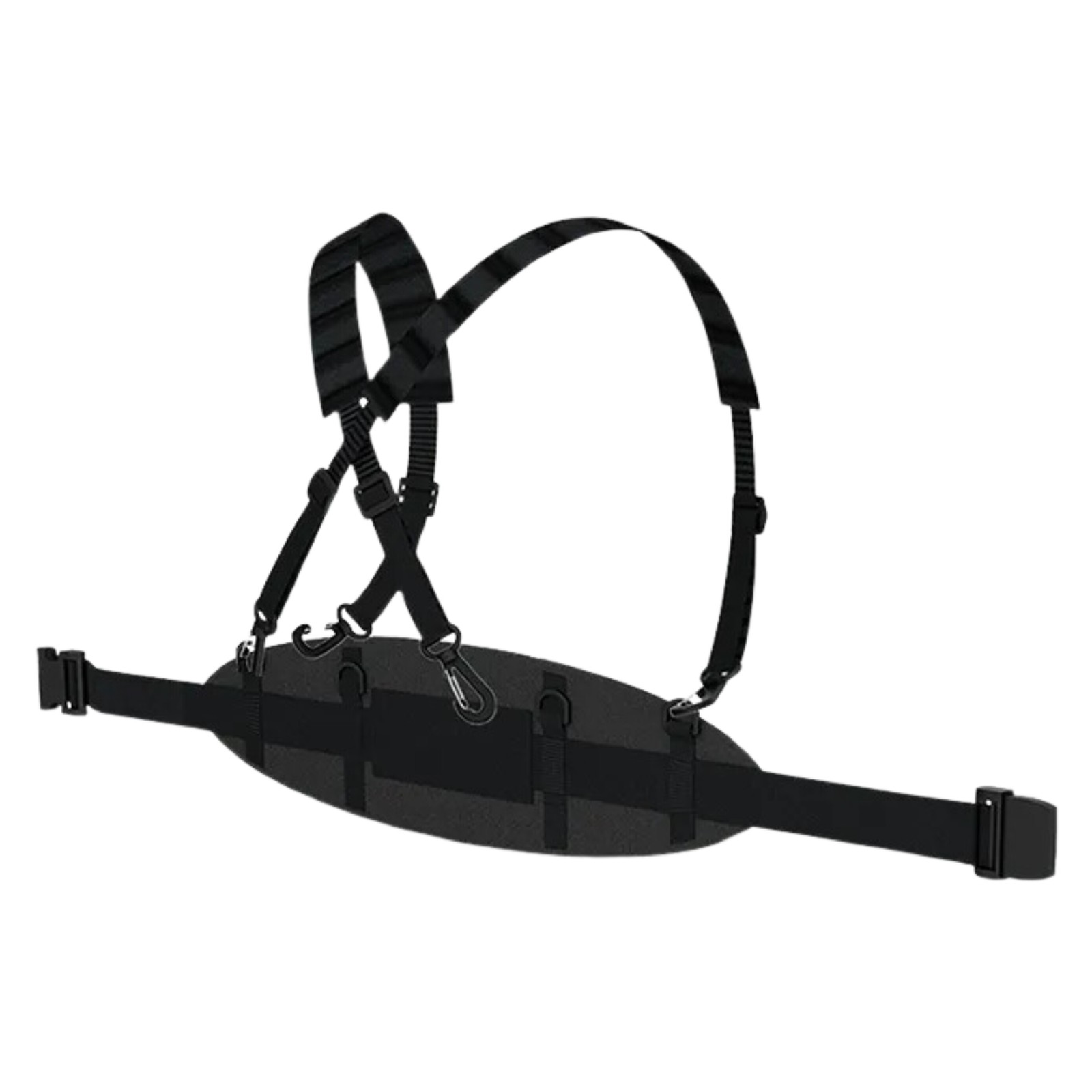

1 x Waist & shoulder belt/harness
1 x Hose with FR cover
1 x Clear lens starter pack
1 x Air flow meter / tester
1 x Heavy-duty carry bag
Specifications: Brand: Weldclass
Part Number: WC-06702
Viewing Area: 95cm2
Standard: AS/NZS 1337.1, AS/NZS 1338.1
Weight: Helmet only 860g / Helmet with respirator 1.79kg
Reliable Power Source: Replaceable batteries plus solar assist, efficient electronics for low power consumption
Auto Controls: Option of Manual (user adjusts), or Auto shade / Sensitivity / Delay adjustment
Landscape format: 116mm wide x 82mm high
3 air flow speeds: 170, 200, 230 L/min
Applications:
MIG welding
Stick welding
TIG welding down to 5 amps
Grinding
Plasma Cutting
Oxy Cutting, Brazing, Heating
Gouging
Warranty: 7-year
Features: 7-year Warranty offer (on electronic lens)*
Enormous 95cm2 viewing area through auto-darkening lensFlip-Up welding lens with wide-view clear grinding visor
Side windows (shade 5) for enhanced peripheral vision
Front cover lens covers / protects both the welding lens and shade 5 side windows
'Landscape' format (116mm wide x 82mm high) auto-darkening window for wider & more natural field of view
Ultra-Crisp V1 (1/1/1/1) rated optics with enhanced colour recognition
Illuminated digital LCD display/controls for superior visibility (auto dims when adjustments are not being made)
Advanced digital controls with memory, cut mode, gradient & other functions
Auto Controls: Option of Manual (user adjusts), or Auto shade / Sensitivity / Delay adjustment (settings adjust automatically depending on arc intensity)
Super-comfortable, wrap-a-round headgear with moulded rear pressure pad, Easy cover lens replacement
Magnification lens holder - takes standard magnification lenses, Super-comfortable, wrap-a-round headgear with moulded rear pressure pad.
High-Impact tested and compliant to Australian standard AS/NZS 1337.1
Auto-darkening lens complies with AS/NZS 1338.1
Reliable Power Source: Replaceable batteries plus solar assist, efficient electronics for low power consumption
Full-Laminate Lens Construction: Each layer in the electronic lens assembly is firmly laminate for superior optical quality and long service life.
This is in contrast to cheaper lenses which are simply glued on the edge and, over time, are prone to contamination and failure.
Auto-on & Auto-off = No buttons to press, hassle-free operation, Weight: Helmet only 940g / Helmet with respirator 1.87kg.
3-Stage filter system includes main particle filter, prefilter, and spark filter.
TH3 filter class, delivering ≥99.8% air particle purity.
Carbon prefilter supplied as standard, removes nuisance level odours.
Audio, visual and vibration alert for filter replacement or airway restriction.
3 air flow speeds: 170, 200, 230 L/min, 4-Point waist and shoulder harness (shoulder harness is removable to allow use with waist hardness only).
Li-ion battery delivers operating time of ≥10 hours @ 170 L/min (≥6 hours @ 230 L/min).
Warranty: 2 years on blower unit, 1 year on battery.
Complies with AS/NZS 1716, Weight: Respirator (with blower unit & hose) only 930g / Helmet with respirator 1.87kg.
Applications:
MIG welding
Stick welding
TIG welding down to 5 amps
Grinding
Plasma Cutting
Oxy Cutting, Brazing, Heating
Gouging
Functions:
Shade adjustment: Auto (shade level adjusts automatically depending on arc intensity) or Manual (user adjusts), adjust in increments of +/- 0.5.
Shade Deviation: When using Auto shade, +/- deviation (fine adjustment) can be adjusted in 0.1 increments to up +2.0/-2.0.
Welding mode: Variable shade 9-14, Cut mode: Variable shade 4-8.
Shade Lock: Switches off auto-darkening function & locks lens to a selected shade level (4-13), ideal for oxy cutting & similiar processes where conditions may not be ideal for normal auto-darkening function
Memory: Save up to 9 favourite settings (recalls shade, sensitivity & delay settings), with ‘instant save’ function on external controls
Delay (switching time from dark back to light after welding stops): Auto or Manual 0.1-1.0s
Gradient Mode: Gradual return (slope down) from dark to light, mirrors cooling of the weld pool to reduce eye strain
Sensitivity: Auto or Manual 0-9 settings, Tack Mode: Returns to shade 5 (instead of shade 3) between welds to reduce fatigue
Respirator airflow speed adjustment: 170, 200, 230 L/min Common Spare Parts & Accessories:
Promax R50 PAPR Main Particle Filter WC-06704
Promax R50 PAPR Carbon Prefilter WC-06705
Promax R50 PAPR Battery WC-06695
Promax 680R and 850R Clear cover lens inner pk5 WC-05357
Promax 850R Clear cover lens outer pk5 WC-06707
Promax 850R Clear grinding visor lens pk5 WC-06709
Magnification lenses
Promax 850R Headgear WC-06712
Sweatband WC-01630
Helmet Lens Batteries: Type CR2450, commonly available from any battery retailer/wholesaler (Weldclass does not supply this item)
